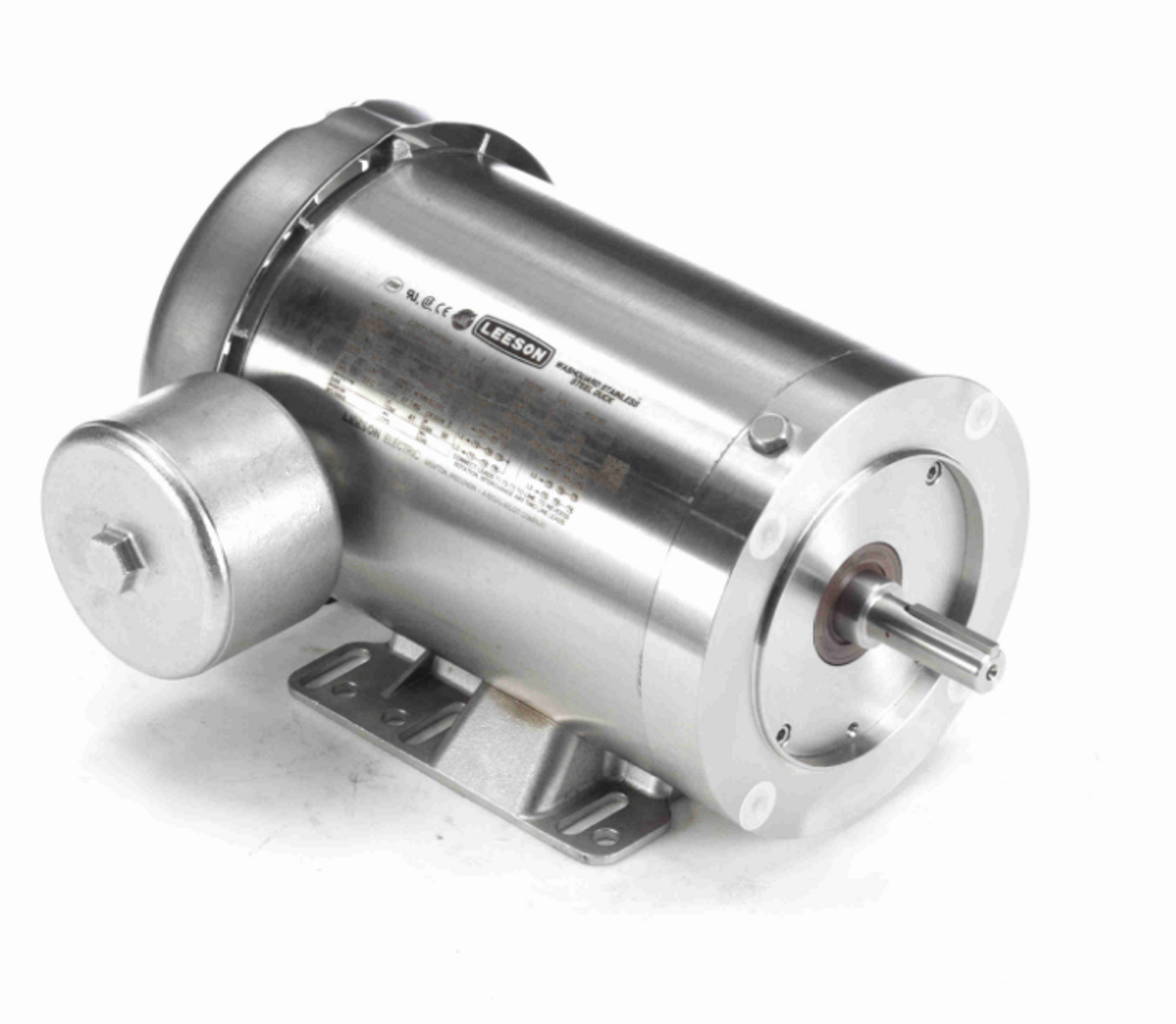

113958.00 Leeson 1 1/2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor

• 1 1/2 hp 3600 RPM, 17.0/9.0-8.5 amps115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
• NEMA 56J Frame Threaded Shaft 5/8″ Diameter
• Service Factor: 1.0, Overload Protection = Auto
• Rigid Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

Jet pump motor with a C-face mount. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 113958.00
